Types of Anchorage Systems:

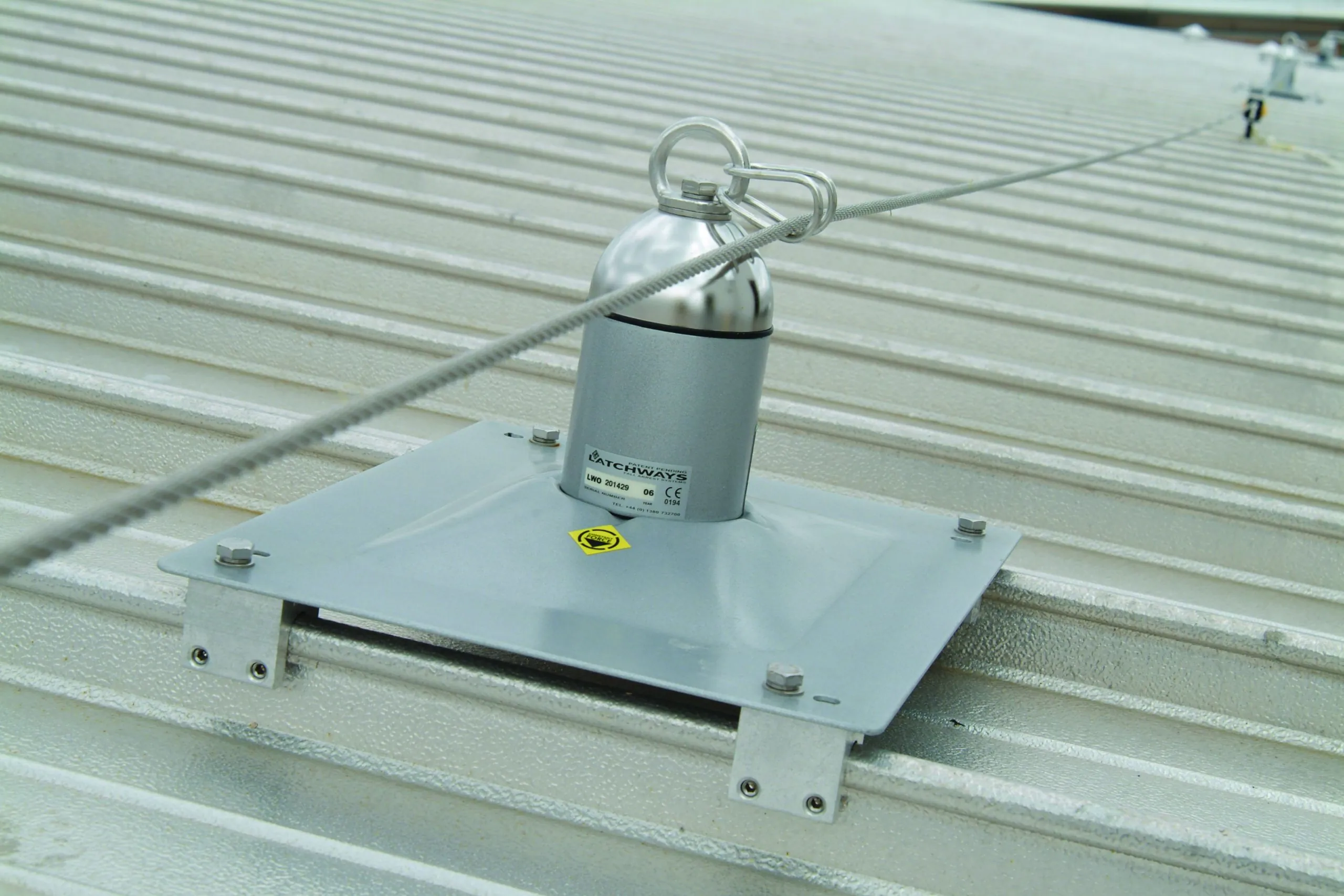

Fixed Roof Anchor Systems
Fixed roof anchor systems are permanently installed anchorage points designed for ongoing rooftop access. These systems provide reliable fall protection for routine maintenance and inspection activities and are engineered to integrate with the building structure for long term use.
Versatile Anchorage Solutions for Rooftops and Elevated Work Areas
Anchorage systems are essential for keeping workers secure when working at height. They serve as trusted connection points for harnesses or lifelines helping prevent serious injuries in environments like rooftops, ladders, and confined or elevated workspaces. Tritech offers a wide range of anchorage solutions designed to match different surfaces, job types, and worksite conditions.
Non-Penetrating and Fixed Installation Options
Every job site is different. That’s why Tritech anchorage systems come in multiple formats:

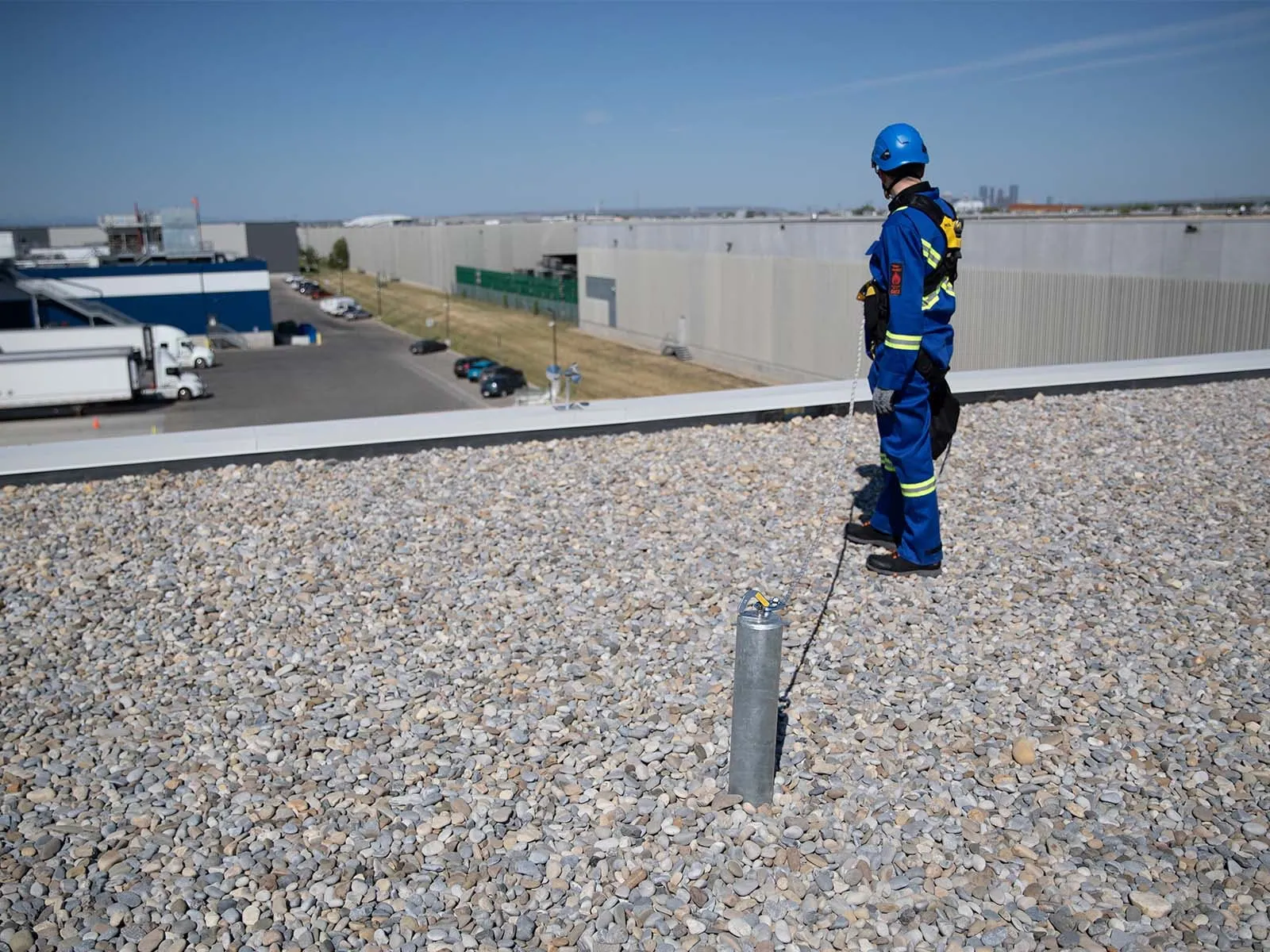

- Fixed Anchors: Permanent tie-off points for regular maintenance or ongoing access needs.

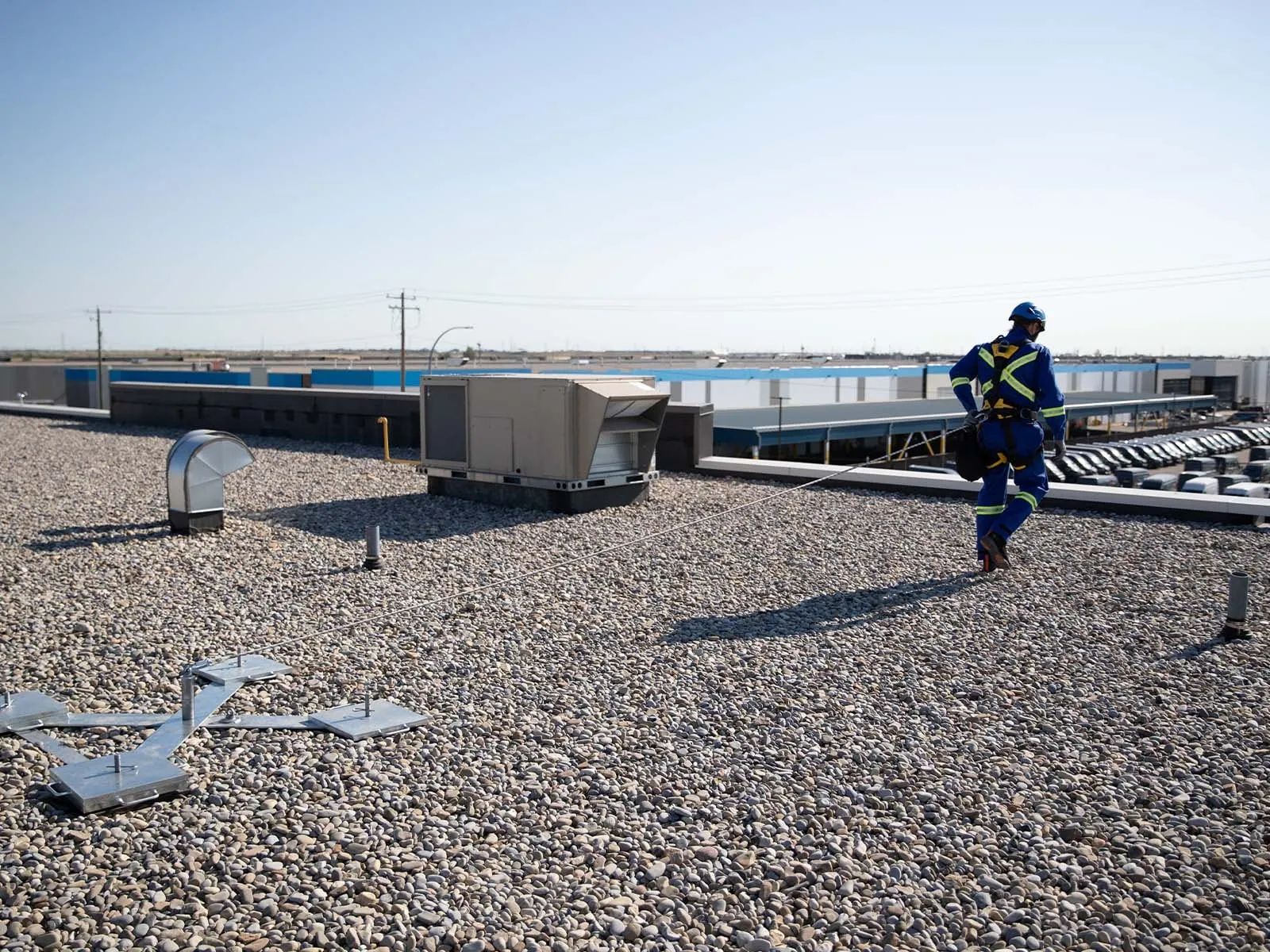

- Non-Penetrating Roof Anchors: Protect roof surfaces while still meeting safety codes.
- Counterweighted Anchors: A portable solution for temporary or short-term projects with no drilling required.
Anchorage Systems FAQs
Choosing the right anchorage point depends on the work environment, type of system being used, and applicable standards. Qualified personnel should assess structural strength, load capacity, direction of potential falls, and ease of connection when selecting anchorage points.
Anchorage systems support compliance when they meet the strength and installation requirements defined by applicable OSHA standards. Compliance requires proper design, installation, and use in accordance with regulatory criteria and industry best practices.
Permanent anchorage systems are engineered and installed for ongoing use, offering long-term attachment points for fall protection equipment. Temporary anchorage systems are designed for short-term tasks or project-based work and can be installed and removed as needed.
Yes. Anchors are designed to serve as connection points for a range of fall protection equipment, including personal fall arrest systems, self-retracting lifelines, and fixed lanyards. The compatibility depends on system design and application requirements.
Anchorage systems should be inspected regularly according to manufacturer guidance, regulatory requirements, and site conditions. Inspections help ensure structural integrity, correct connections, and continued compliance with safety standards.
Answers to key questions
What are the 4 types of fall protection?
Fall protection generally sorts into four approaches: elimination or prevention (removing the hazard or guarding the edge with passive systems like guardrails), fall restraint (keeping a worker back from the edge so a fall cannot start), fall arrest (stopping a fall in progress with a harness, connector, and anchor), and administrative controls (warning lines, training, and procedures). Anchorage systems are the connection point that fall restraint and fall arrest both depend on.
At what height is fall protection required?
Under OSHA general industry rules (29 CFR 1910.28), fall protection is generally required at 4 feet above a lower level. Under construction (29 CFR 1926.501), the trigger is generally 6 feet. An anchorage system supports compliance wherever a worker is exposed to a fall at or above those heights and a passive guard is not feasible.
What is the OSHA 5000 lb requirement?
OSHA requires an anchorage used for personal fall arrest to support at least 5,000 pounds for each employee attached, or to be designed, installed, and used under the supervision of a qualified person as part of a complete personal fall arrest system that maintains a safety factor of at least two (29 CFR 1910.140(c)(13) general industry; 29 CFR 1926.502(d)(15) construction). Most engineered anchorage systems comply through the second path, because a qualified person sizes the anchorage to the actual structure and the forces a fall would generate rather than relying on a component rating alone. Either way, compliance is documented for the specific installation rather than assumed from a catalog rating.

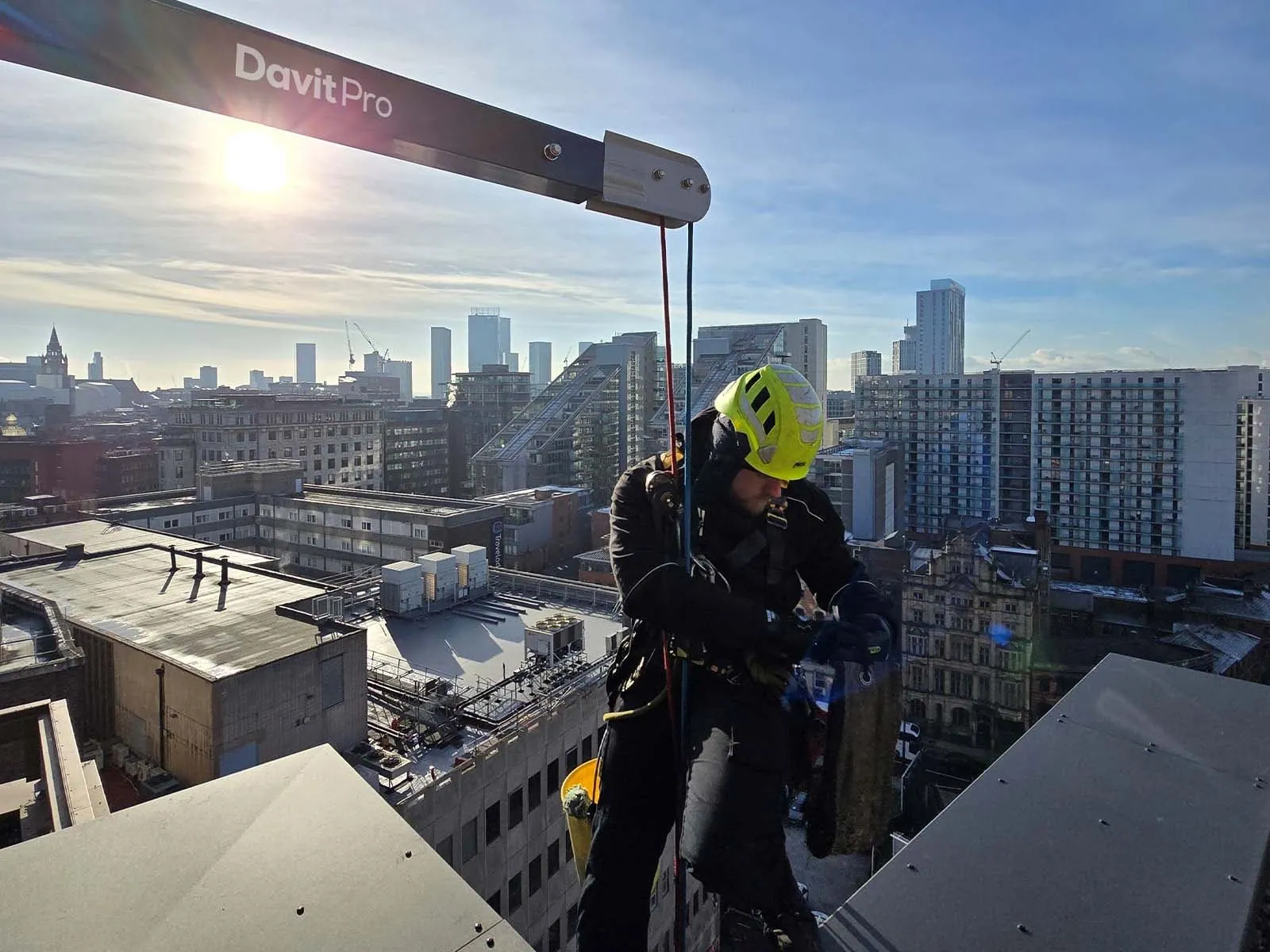

What is a davit arm?
A davit arm is an overhead support that holds an anchorage point out and above a work area, most often at a building edge for facade access, window washing, or rescue. It positions the tie-off above the worker so suspension and overhead arrest work correctly, and it can be removed from a fixed base socket between jobs. Tritech engineers the davit, its base, and the anchorage as one load path.
